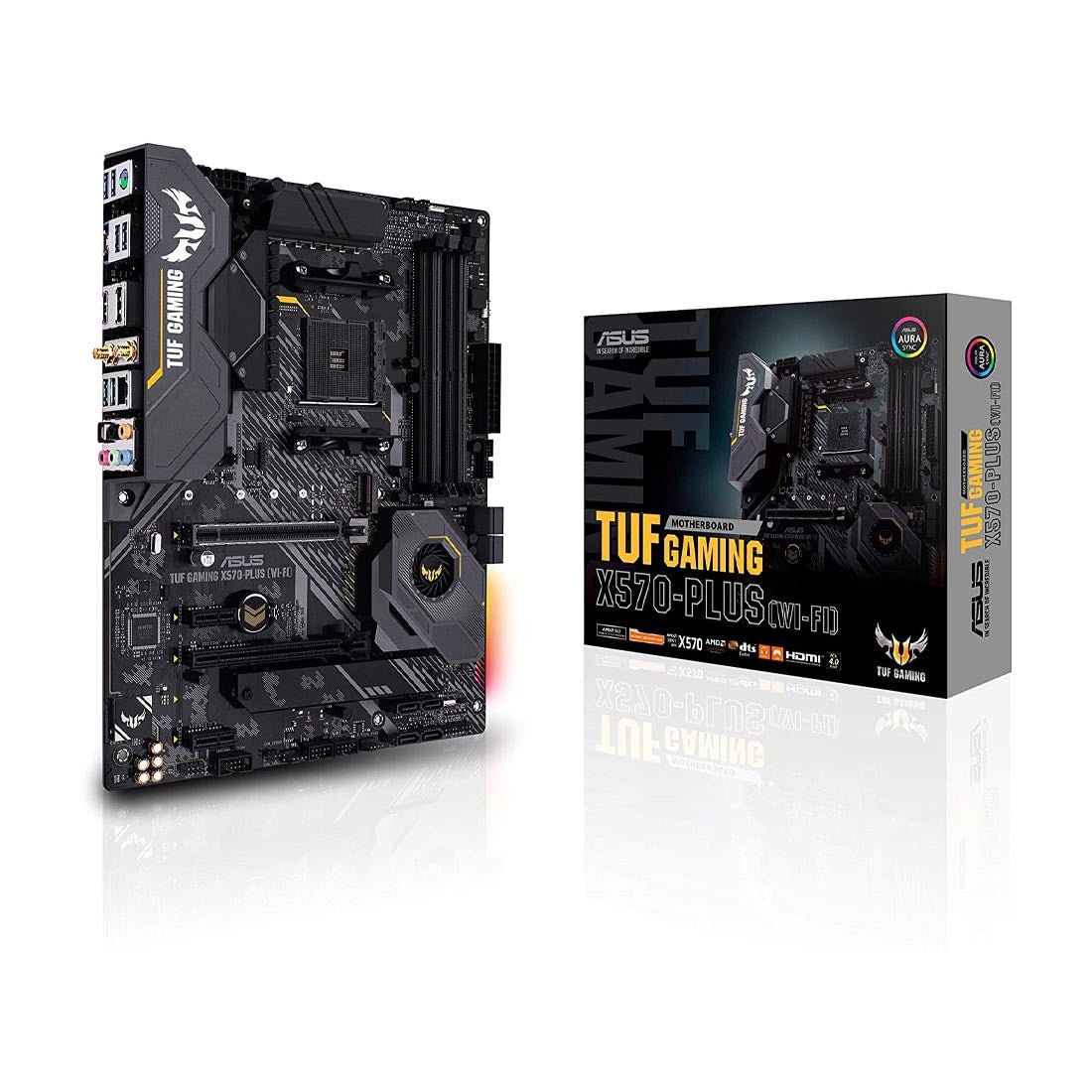

ASUS TUF Gaming X570-Plus (Wi-Fi) AMD AM4 ATX Motherboard with WiFi and PCIe 4.0 Dual M.2
ASUS TUF Gaming X570-Plus (Wi-Fi) AMD AM4 ATX Motherboard with WiFi and PCIe 4.0 Dual M.2 - Image 2
ASUS TUF Gaming X570-Plus (Wi-Fi) AMD AM4 ATX Motherboard with WiFi and PCIe 4.0 Dual M.2 - Image 3
ASUS TUF Gaming X570-Plus (Wi-Fi) AMD AM4 ATX Motherboard with WiFi and PCIe 4.0 Dual M.2 - Image 4
ASUS TUF Gaming X570-Plus (Wi-Fi) AMD AM4 ATX Motherboard with WiFi and PCIe 4.0 Dual M.2 - Image 5
ASUS TUF Gaming X570-Plus (Wi-Fi) AMD AM4 ATX Motherboard with WiFi and PCIe 4.0 Dual M.2 - Image 6
ASUS TUF Gaming X570-Plus (Wi-Fi) AMD AM4 ATX Motherboard with WiFi and PCIe 4.0 Dual M.2 - Image 7

ASUS TUF Gaming X570-Plus (Wi-Fi) AMD AM4 ATX Motherboard with WiFi and PCIe 4.0 Dual M.2

₹12,300.00

Cash on Delivery

Cash on Delivery is available for most of the products. However, we may sometimes ask for a small advance payment while confirming the order.

7 Days Return

You can return the product & get a new replacement if the product is received in defective / damaged condition.

Free Fast Delivery

We are glad to provide free shipping throughout India.

100% Secure Payment

We are using the best payment gateway “Razorpay” for safe & secure and hassle-free payments.

Genuine Manufacturer Warranty

All products sold through our website come with a manufacturer’s warranty & we provide GST invoice for every order. To know the warranty period, please check in the product specification.

Excellent Customer Support

We are available on WhatsApp / Phone: 08069640827, and Email: support@99deals.in

Description

  • Designed for 2nd and 3rd Gen AMD Ryzen processors with AM4 Socket and the dual PCIe 4.0 M.2 slots provides NVMe SSD RAID support for incredible performance boost.
  • Features an actively cooled heatsink to prevent throttling during sustained transfers and the fans can configure via Fan Xpert 4 and our award-winning UEFI BIOS.
  • TUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide for a 3X longer lifespan than traditional panels.

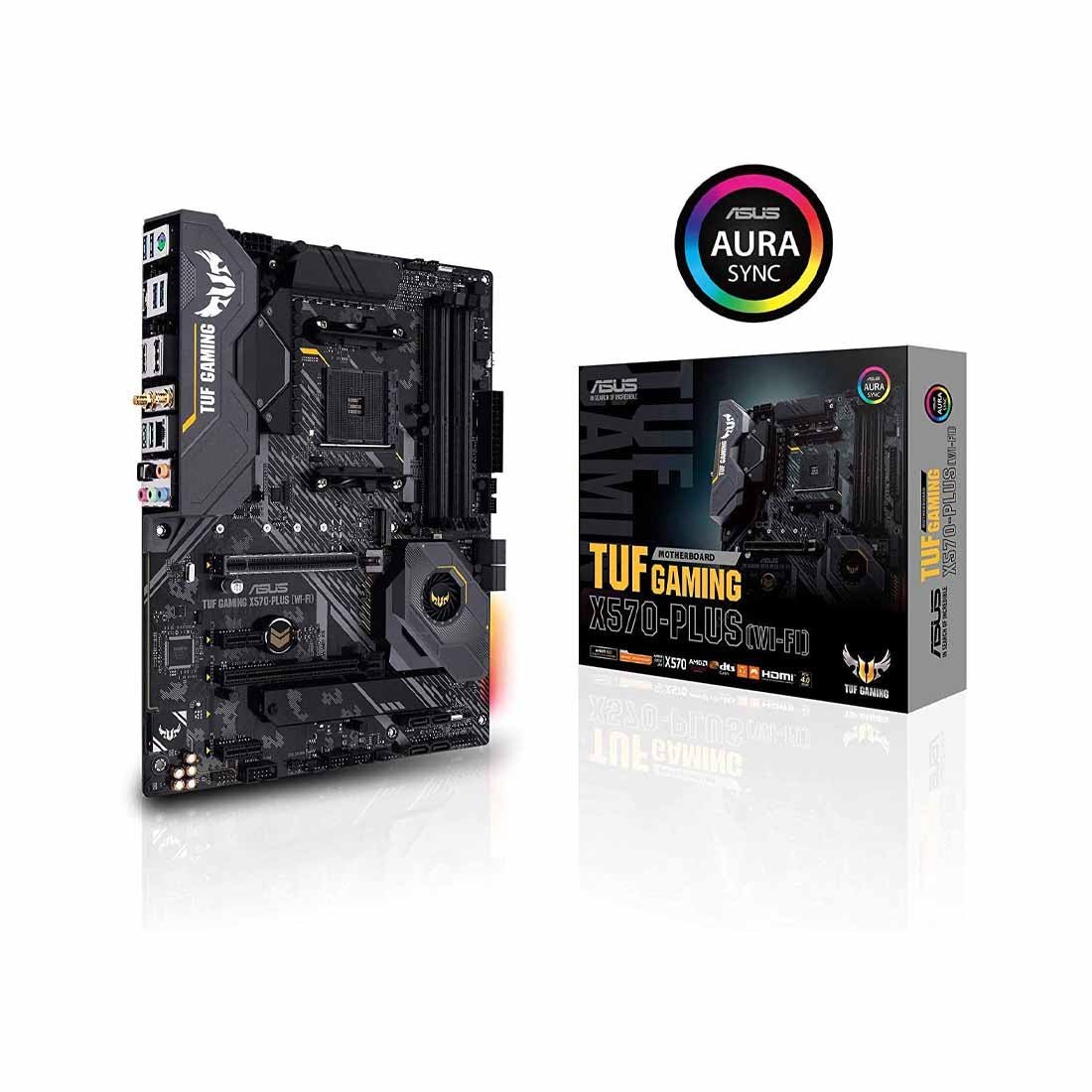

  • ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers.
  • CPU VRM utilizes 12+2 Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD’s latest processors demand.

~section~

Model TUF GAMING X570-PLUS (WI-FI)
CPU Socket AMD AM4 Socket
CPU Support 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/AMD Ryzen 2nd Generation/3rd Gen AMD Ryzen Processors
Chipset AMD X570
Memory 3rd Gen AMD Ryzen Processors
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
2nd Gen AMD Ryzen Processors
4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
On-Board Graphics support Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
Multi-VGA output support: HDMI/DisplayPort ports
Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz
Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz
Expansion Slot 3rd Gen AMD Ryzen Processors
1 x PCIe 4.0 x16 (x16 mode)
2nd Gen AMD Ryzen Processors
1 x PCIe 3.0 x16 (x16 mode) 1 year / 2 years
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x8 mode) 1 year / 2 years
AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode)
2 x PCIe 4.0 x1
Multi-GPU support 3rd and 2nd Gen AMD Ryzen Processors
AMD Ryzen 2nd Generation/Ryzen 1st Generation Processors
Supports AMD CrossFireX Technology
LAN Realtek L8200A
ASUS Turbo LAN Utility
TUF LANGuard
Wireless (If applicable) Intel Wireless-AC 9260
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports 2×2 MU-MIMO
Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
Storage 3rd Gen AMD Ryzen Processors:
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen Processors:
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset:
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
8 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
Audio Realtek ALC S1200A 8-Channel High-Definition Audio CODEC
USB Ports 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors:
4 x USB 3.2 Gen 1 port(s) (4 at back panel)
AMD X570 chipset:
3 x USB 3.2 Gen 2 port(s) (3 at back panel, 2 x Type-A+1 x USB Type-CTM)
AMD X570 chipset:
2 x USB 3.2 Gen 1 port(s) (2 at mid-board)
AMD X570 chipset:
4 x USB 2.0 port(s) (4 at mid-board)
I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x Optical S/PDIF out
5 x Audio jack(s)
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C)
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
Internal I/O ports 2 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x SPI TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s) 1 year / 2 years
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

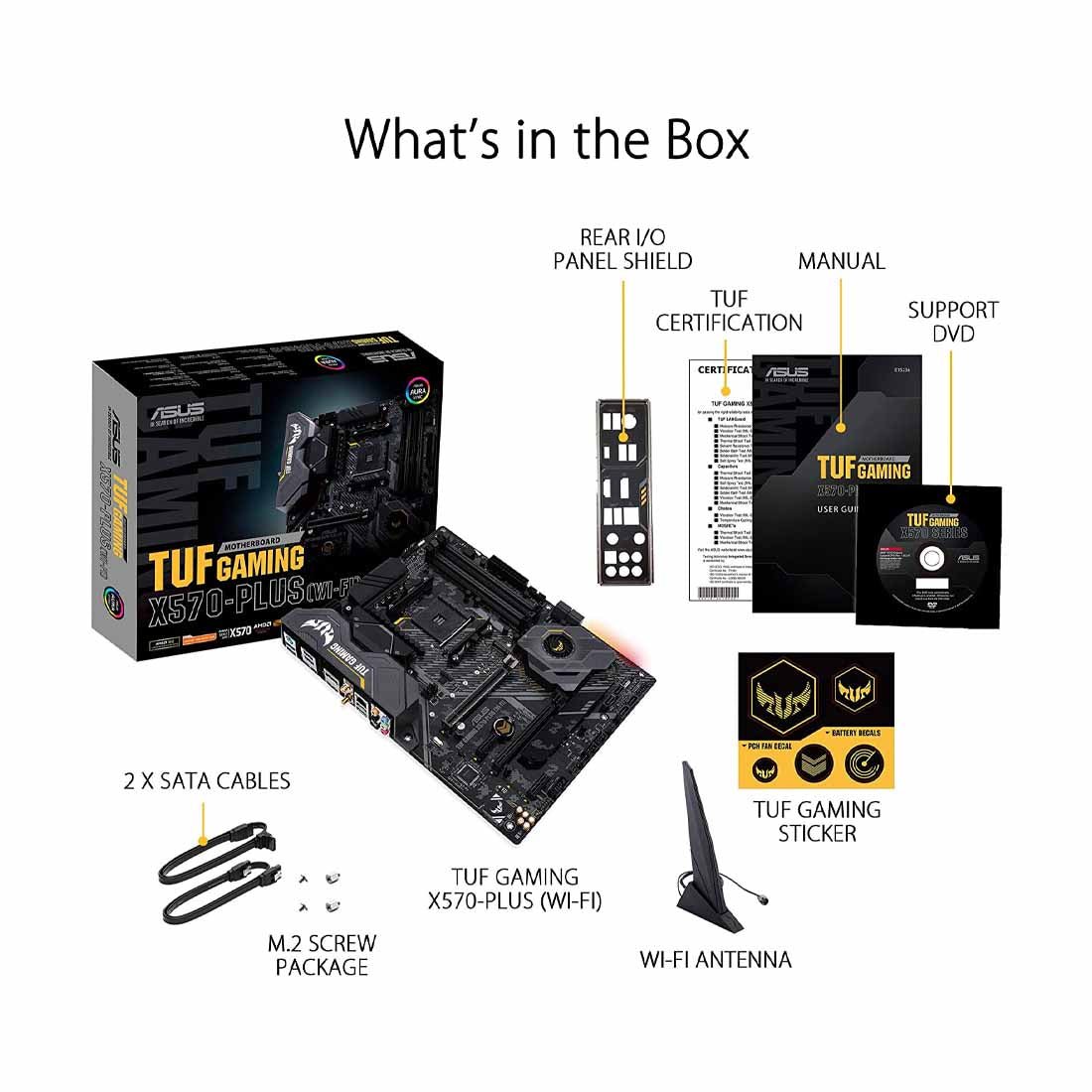

Accessories User’s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x TUF GAMING Sticker
1 x TUF Certification card(s)
Dimension 30.5 cm x 24.4 cm ATX Motherboard
Warranty 3 Years
