₹10,000.00
Cash on Delivery is available for most of the products. However, we may sometimes ask for a small advance payment while confirming the order.
You can return the product & get a new replacement if the product is received in defective / damaged condition.
We are glad to provide free shipping throughout India.
We are using the best payment gateway “Razorpay” for safe & secure and hassle-free payments.
All products sold through our website come with a manufacturer’s warranty & we provide GST invoice for every order. To know the warranty period, please check in the product specification.
We are available on WhatsApp / Phone: 08069640827, and Email: support@99deals.in

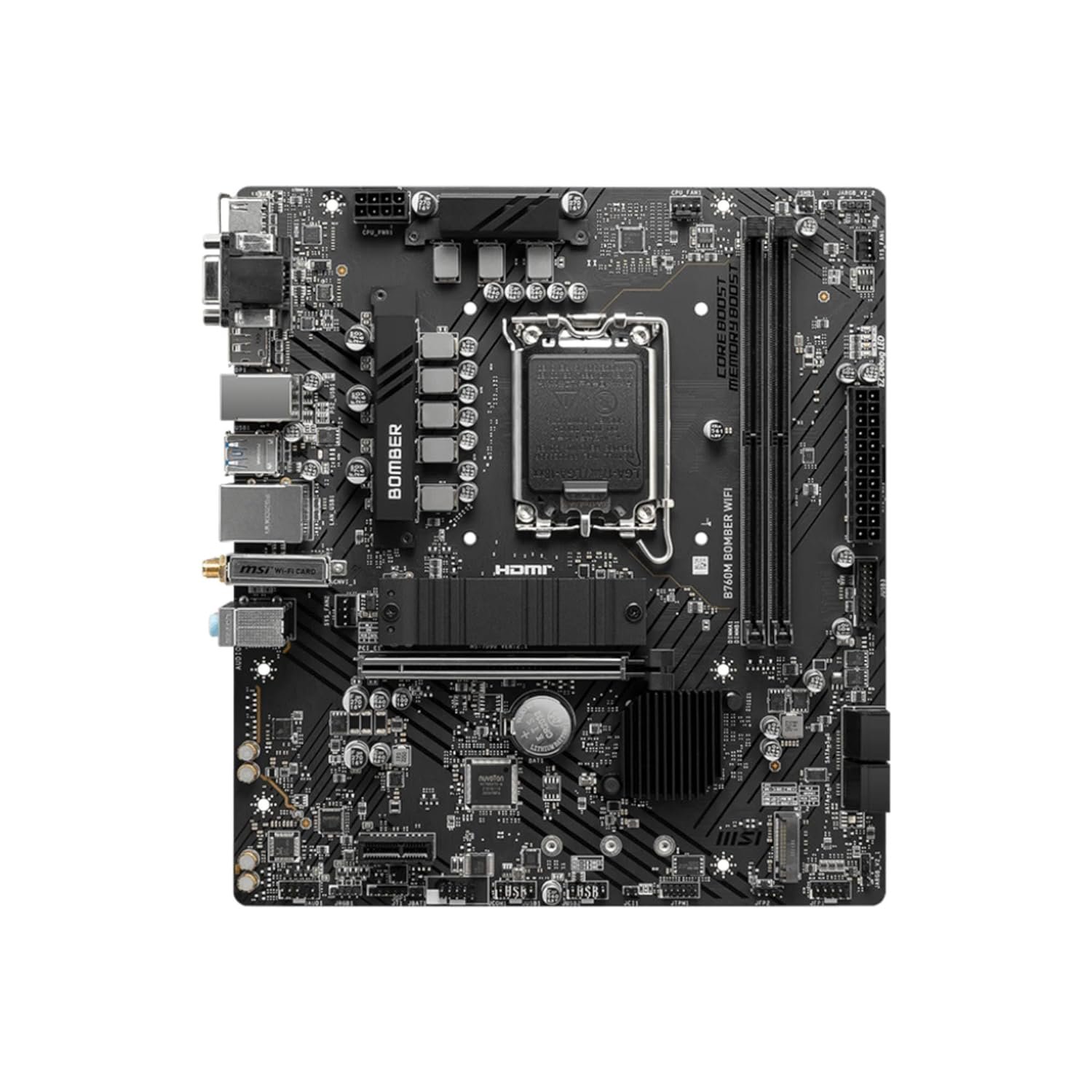

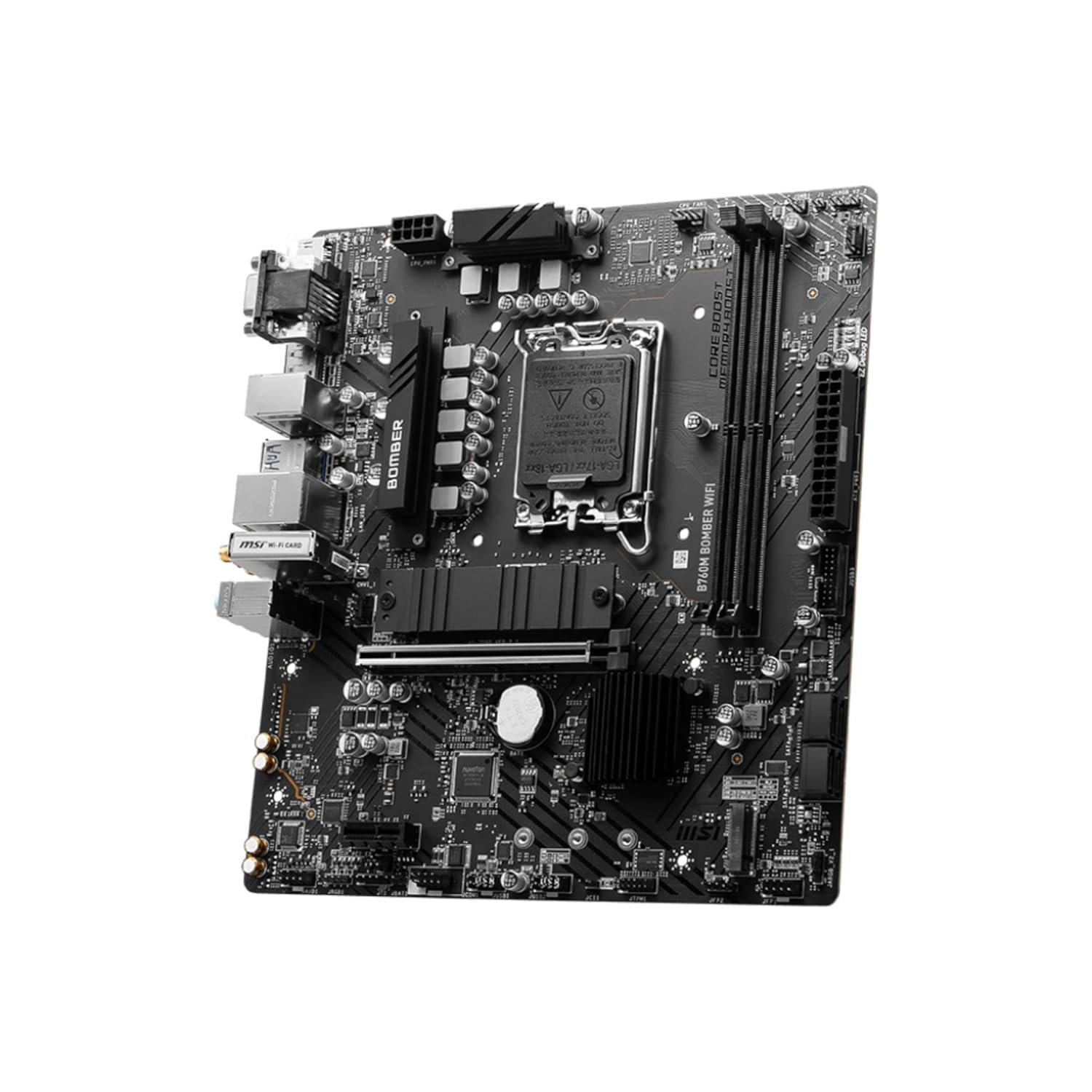

| Model | B760M BOMBER WIFI |
| CPU Support | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors |
| CPU Socket | LGA 1700 |
| Chipset | INTEL B760 |
| Form Factor | Micro ATX |
| Memory |
2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC |
| Expansion Slot | 1x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Storage |
2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) |
| USB |
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| WIRELESS LAN & BLUETOOTH |
Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
| ONBOARD GRAPHICS |
1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x D-Sub Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz |
| Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |

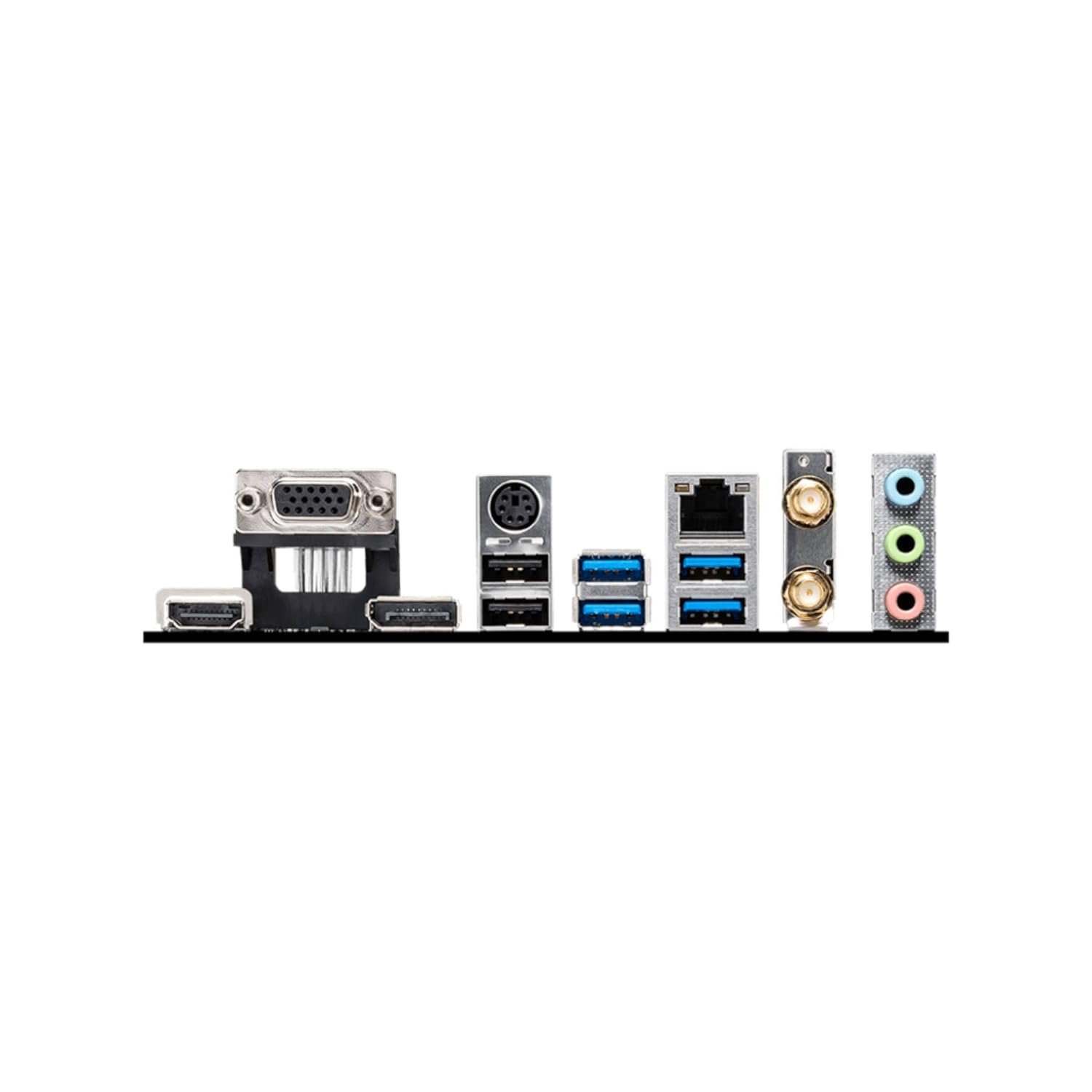

| BackPanel Ports | HDMI VGA DisplayPort Keyboard / Mouse 2.5G LAN Wi-Fi / Bluetooth Audio Connectors USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) |
| Internal I/O Connectors |
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
| PCB INFO |
mATX 220mmx243.84mm |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| LED Feature | 4x EZ Debug LED |
| Warranty | 3 Year Manufacturer Warranty |
| Package Contents | Motherboard Regulatory Notice Quick Installation Guide 2 x M.2 Screw / Standoff Sets SATS Cables Wi-Fi Antenna I/O Shield |
| Dimensions | 24.4 x 22 x 5 cm; 1 kg |
Reviews
There are no reviews yet.
