₹15,000.00
Cash on Delivery is available for most of the products. However, we may sometimes ask for a small advance payment while confirming the order.
You can return the product & get a new replacement if the product is received in defective / damaged condition.
We are glad to provide free shipping throughout India.
We are using the best payment gateway “Razorpay” for safe & secure and hassle-free payments.
All products sold through our website come with a manufacturer’s warranty & we provide GST invoice for every order. To know the warranty period, please check in the product specification.
We are available on WhatsApp / Phone: 08069640827, and Email: support@99deals.in
~section~
| Model | ASUS TUF GAMING B660M-PLUS WIFI D4 Micro-ATX Motherboard |
| Part Number | 90MB1930-M0IAY0 |
| CPU Socket | Intel Socket LGA 1700 |
| Chipset | Intel B660 |
| CPU Support | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |

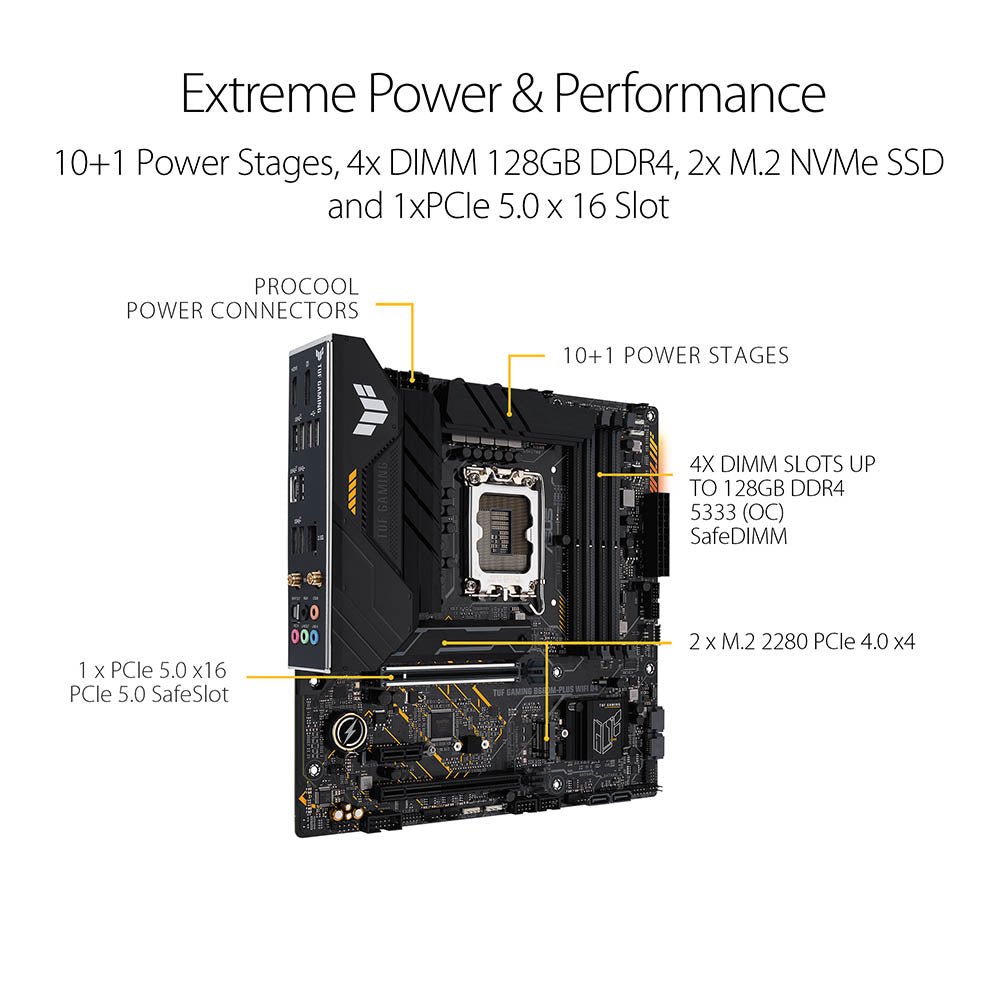

| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/ 3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| On-Board Graphics support | 1 x DisplayPort Port 1 x HDMI Port |
| Expansion Slot |
Intel 12th Gen Processors: 1 x PCIe 5.0 x16 slot Intel B660 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slots (supports x1 mode) |
| Ethernet | TUF LANGuard 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Wireless & Bluetooth | Intel Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| Storage |
Intel 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280 – Intel 12th Gen processors support PCIe 4.0 x4 mode Intel B660 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback |
| USB |
Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |

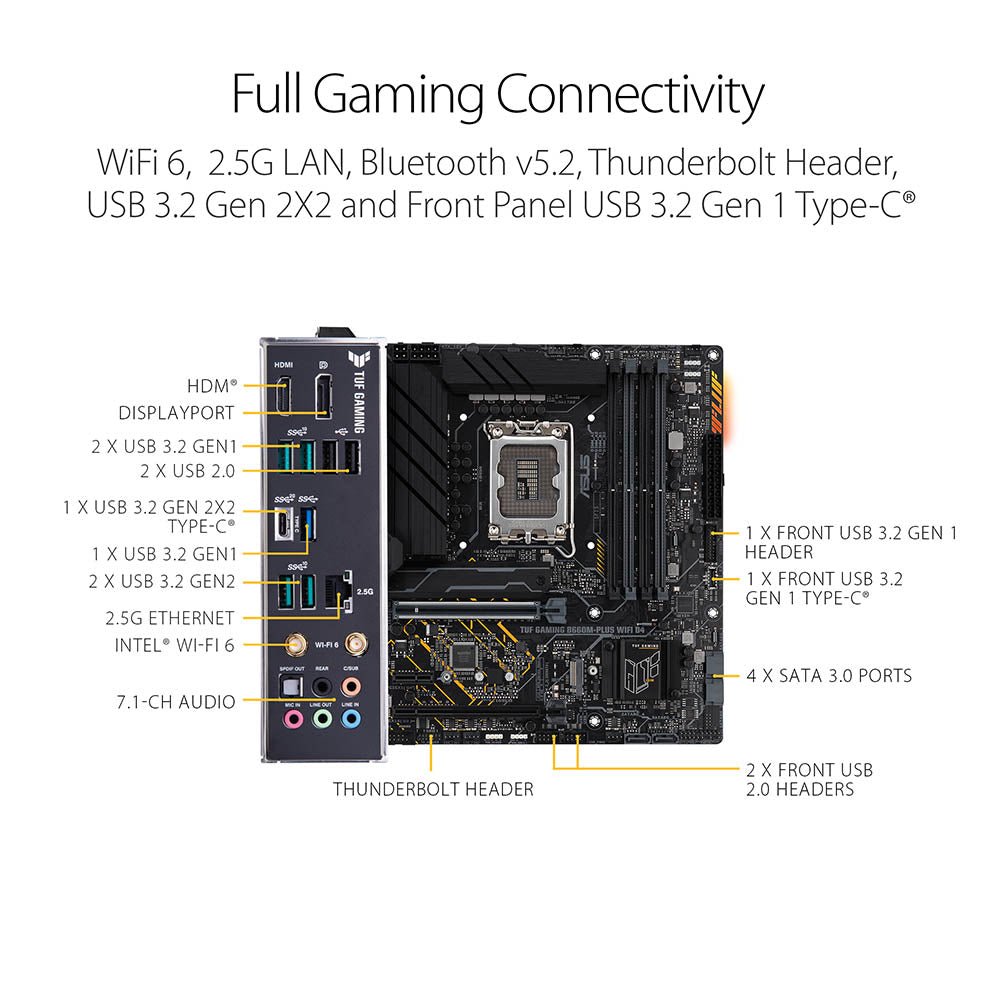

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| I/O Ports |

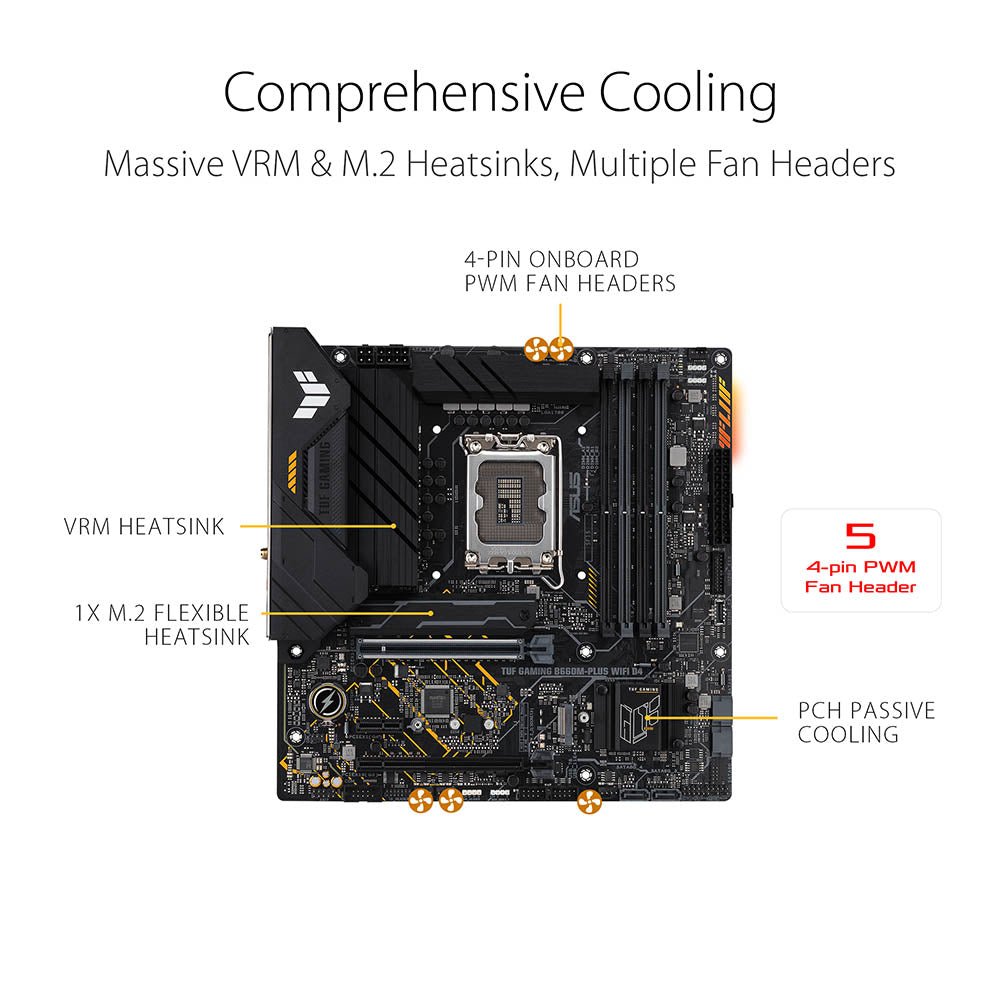

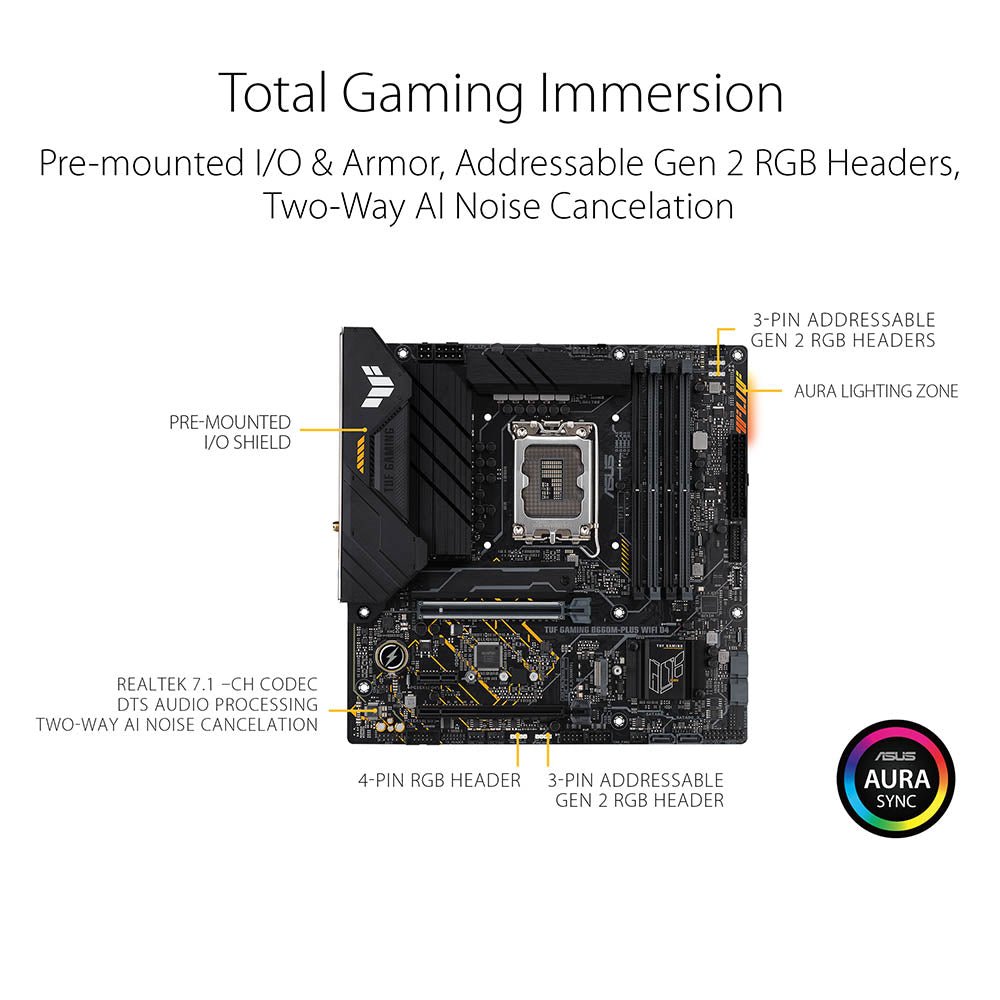

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header |

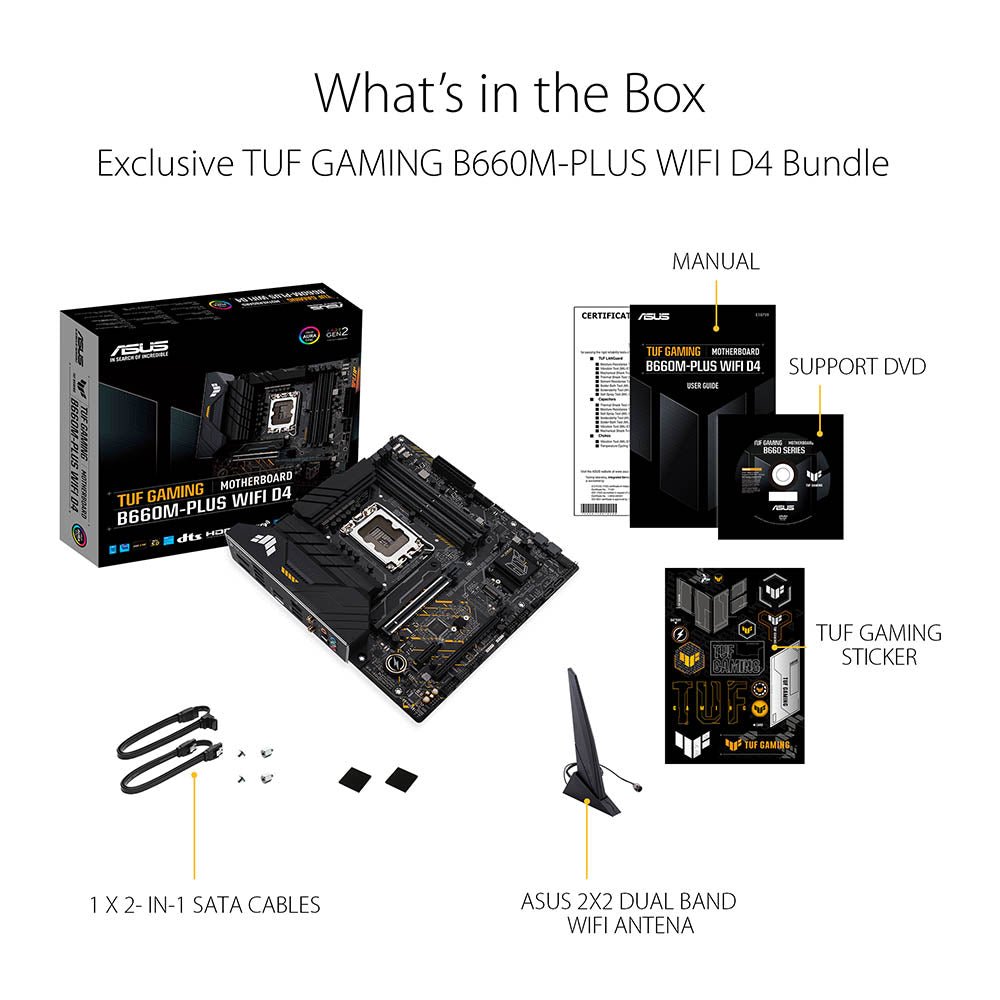

| Accessories |
Cables 2x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 Rubber Package 1 x M.2 SSD screw package 1 x TUF Gaming sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User manual |
| Dimensions | 24.4cm x 24.4cm Micro-ATX Form Factor |
| Warranty | 3 Years of Brand Warranty |
